Portable Handheld Heart ECG Monitoring Device

Unique Features

● It adopts a unique high-precision digital filter to prevent baseline drift and other interference without causing waveform distortion. It enhances the ability of anti-baseline drift, which is convenient to interpret the waveform.

● The ECG Acquisition Unit for Telemedicine wirelessly transmits the ECG data to the PC via Bluetooth. There are only two buttons in the whole machine. The operation method is flexible and simple, which reduces the workload and improves work efficiency.

● External USB magnetic connection charging

Bluetooth

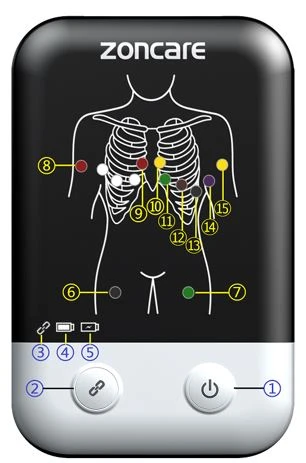

1: Bluetooth reminder (number ③)

● Connect button: long press for 3s to reset the host's Bluetooth connection

● Connection indicator: Off-Bluetooth is not turned on or the Bluetooth module is not working properly; Flashing-Bluetooth is not Connected, or Bluetooth does not transmit data after being connected; Steady on-Bluetooth is connected and transferring data.

2: Bluetooth connection

● Bluetooth automatic connection function：after the first connection, the connection information will be automatically saved; if you reset the Bluetooth connection, you must re-match the next time.

3: Support battery reminder and alarm (number ④)

● The battery indicator should be observed at any time, it is yellow-green when the battery is full. When the battery is low, the color is red. At this time, you need to charge the ECG Acquisition Unit for Telemedicine.

Q&A

Q: What’s the Environmental Requirements

A: It is required to keep warm indoors in winter, and the room temperature is no lower than 18 ℃ so as to avoid EMG interference caused by coldness.

Q: Can the ECG Acquisition Unit for Telemedicine used for Pediatric?

A: Yes .this product can be used for pediatric.
