ECG Workstation PC-Based Software Sync Collection and Analysis

Unique Features

● 12-channel ECG equipped with Zoncare workstation software allows transmission of full 12 ECG leads to the user PC through Bluetooth.

● Support for carrying out ECG examinations in adults and pediatric patients in all types of health care centers.

● External USB magnetic connection charging.

● Support battery reminder and alarm

● LED display of human lead diagram

● Support lead-off sound and light alarm

Technical Specification

● Number of electrodes: 10

● ECG channels: 12

● Sampling frequency: 32000Hz/channel

● Transmitted ECG signal resolution: 24bits

● Transmission type: Bluetooth

● ECG signal analysis: Zoncare workstation Software

● Continuously work: ≥6 hours

● Power Supply: Rechargeable lithium ion battery (DC 3.7V)

● Charging adapter: DC 5V 2A PH10-5

● Power Cord for Adapter: 16A 250V

● Size: (L × W × H) 97.5mm×61.9mm×19.5mm

● Weight: About 99 gram

Warranty Information

● 18 months limited warranty

ECG Signal Analysis

ECG signal analysis: Zoncare workstation Software

ECG signal analysis: Zoncare Android APP Software

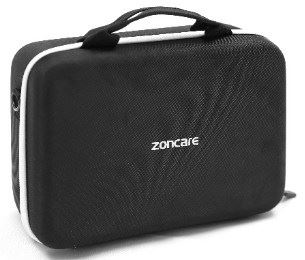

Product storage bag

Q&A

Q: How long does this product work continuously?

A: More than 6 hours, (The battery is new and fully charged, input 1mV, 10Hz sinusoidal signal without baseline drift to all channels, and continuously electronically record the signal at 25mm/s under standard sensitivity).

Q: Are you a direct manufacturer and exporter from China?

A: Yes, we are. We are manufacturer from Wuhan, China, specializing in ultrasound system, ECG machine and patient monitor. We have strong R & D team for product design and development, skilled workers and advanced manufacturing equipment. Also, we have international sales department. We are looking for more distribution partner.
